Satin 102 - Lineal Brush Sander

Lineal Brush Sanders

We have designed our Lineal Brush Sander to help you with your everyday sanding needs. Our machines can be used for white wood sanding and sealer sanding of linear parts such as mouldings, flooring, furniture components, window parts etc. Our Lineal Brush Sanders work well as a stand alone unit, or as part of the finishing line. It could be also installed right behind the moulder.

Our proprietary technology can be tailored to your needs. Our basic machines are built with two or four Flexible Abrasive Heads. Multiple head configurations are available: horizontal or vertical, top or bottom, left or right. Special versions can be equipped with:

  • Top or bottom wide belt unit
  • Top or side belt sanding units
  • Vibrating sanding blocks

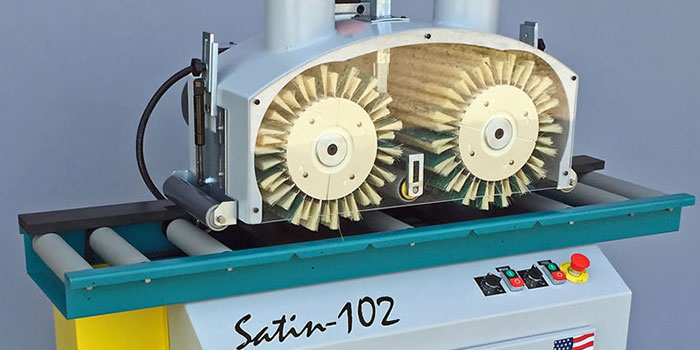

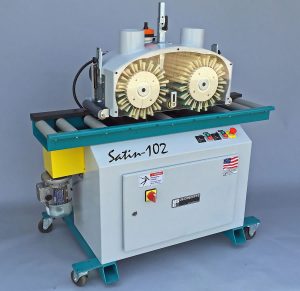

Satin 102 – Lineal Brush Sander

Satin 102 - Lineal Brush Sander

Our basic Lineal Brush Sander equipped with two top counter-rotating heads with Flexible Finger Abrasives for top sanding of your mouldings

General Information

This is our basic Lineal Brush Sander equipped with two top counter-rotating heads with Flexible Finger Abrasives for top sanding of your mouldings. The Satin-102 works very well for white wood sanding and sealer sanding where side sanding is not required. This machine equipped with casters can be easily moved around your shop as needed. Replaceable sanding strips are available in full range of abrasive grids from 60 to 800.

Machine Details

  • Max. material height  3”
  • Max. material width   10” (12” optional)
  • Heavy Duty fabricated construction
  • Two Horizontal Sanding Heads for Flexible Finger Abrasives
    • Two 3/4HP motors (1HP optional)
    • Counter rotating spindles – 1 1/2” diameter
    • 12” dia. X 10” sanding head capacity (12” optional)
    • 200 – 1000 RPM adjustable speed
  • Roller Conveyor
    • Conveyor width = 10” (12” optional)
    • Variable conveyor speed = 10 – 100 FPM
  • Voltagem = 230 (208)V -1 or 3 phase, 460V, 600V)
  • Pushbuttons & Speed Potentiometers control
  • Machine Dimensions = 54” x 32” x 56”

View Detail Photos

  • Satin 102 - Lineal Brush Sander
  • Satin 102 - Lineal Brush Sander

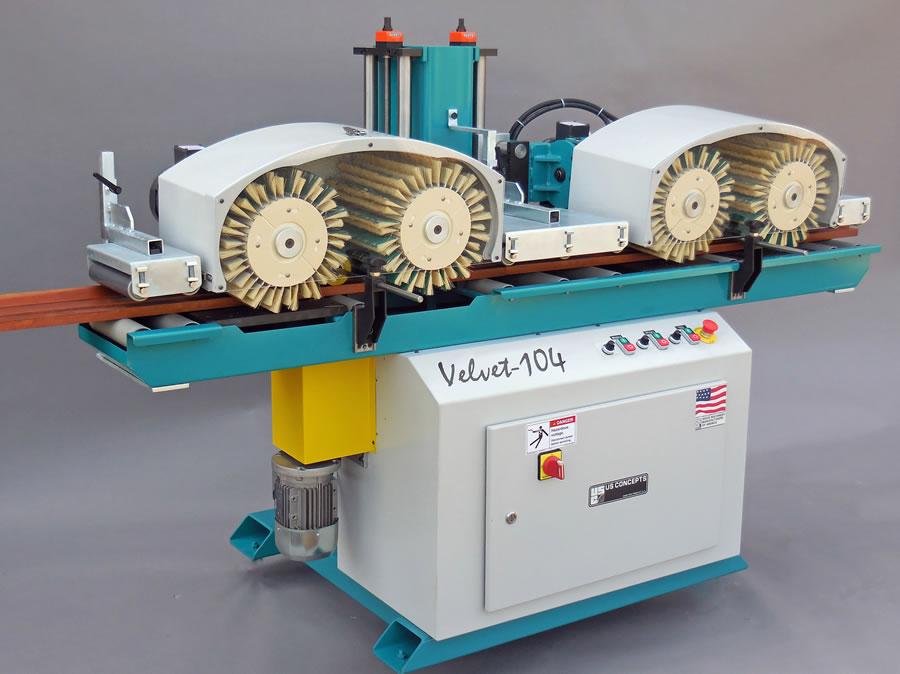

Velvet 104 – Lineal Brush Sander

General Information

Velvet 104 - Lineal Brush Sander

The Velvet-104 is our flagship Lineal Sander with Flexible Finger Abrasives. The standard machine is built with two pairs of universal Brush Sanding Heads. Our research demonstrates that most visible area requiring sanding, that requires the most attention is a face of the moulding. That is why we designed this machine to sand mainly with four top heads which allow for four step graduation of abrasive grits to achieve the most desirable finish. However, if side sanding is needed then one or both heads could be tilted to a vertical position as needed. Replaceable sanding strips and available in full range of abrasive grids from 60 to 800.

Our machine can be used for white wood sanding as well as sealer sanding. The Velvet-104 works well as a stand alone unit or as part of the finishing line. It could also be installed right behind the moulder.

We developed our technology for your benefit so this machine can be tailored exactly to your needs. Our basic Velvet-104 is built with four heads, however multiple head configurations are available: horizontal or vertical, top or bottom, left or right. Special versions can be equipped also with top or bottom wide belt unit and side belt sanding units.

Machine Details

  • Max. material height – 4”
  • Max. material width – 10” (12” optional)
  • Heavy Duty fabricated construction
  • Two Universal Sanding Heads for Flexible Finger Abrasives
    • Tilt-able from Horizontal to Vertical RH
    • Two 3/4HP motors (1HP optional)
    • Counter rotating spindles – 1 1/2” diameter
    • 12” dia. X 10” sanding head capacity (12” optional)
    • 200 – 1000 RPM adjustable speed
  • Two Universal Sanding Heads for Flexible Finger Abrasives
    • Tilt-able from Horizontal to Vertical LH
    • Two 3/4HP motors (1HP optional)
    • Counter rotating spindles – 1 1/2” diameter
    • 12” dia. X 10” sanding head capacity (12” optional)
    • 200 – 1000 RPM adjustable speed
  • Roller Conveyor
    • Conveyor width = 10” (12” optional)
    • Variable conveyor speed = 10 – 100 FPM
  • Voltage = 230 (208)V -1 or 3 phase, 460V, 600V)
  • Pushbuttons & Speed Potentiometers control
  • Machine Dimensions = 84” x 52” x 60”

View Detail Photos

  • Velvet 104 - Lineal Brush Sander
  • Velvet 104 - Lineal Brush Sander
  • Velvet 104 - Lineal Brush Sander
  • Velvet 104 - Lineal Brush Sander
  • Velvet 104 - Lineal Brush Sander
