Haunchers – Notchers

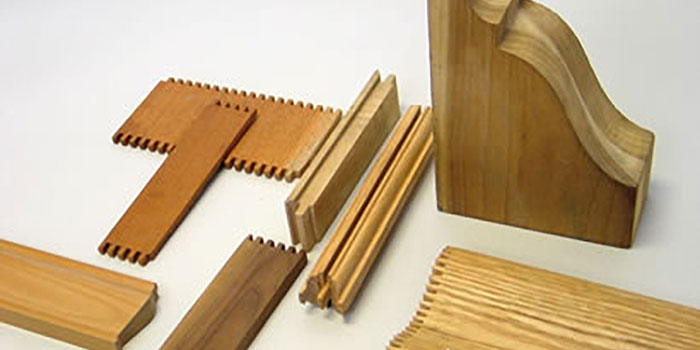

These heavy duty machines are used to make shaped cuts in the end or along the edge of a board or panel. Typical uses include box-joint, finger-joint or tenon cuts, shaping the edges of square ballisters or dentil moulding, notching the edge of the panel, or shaping the end of the moulding such as window aprons.

  • Hauncher Notchers
  • Hauncher Notchers
  • Hauncher Notchers
  • Hauncher Notchers

CHB-8: Hauncher – Notcher

CHB8 Haunchers – Notchers
  • Horizontal spindle moves up-down passed the material clamped to the table
  • Climb cut and table insert ensure a clean cut even when cross grain cutting
  • Air / Oil adjustable feed system
  • Air clamps
  • Automatic cycle
  • Max. Work piece height – 4″
  • Max. Cutting depth – 2 “
  • Max. Cutting width – 8”
  • Cutter diameter – 8″
  • Motor – 7.5HP, 10HP
  • Can be synchronized with TigerStop compatible systems

CHB-12, CHB-16, CHB-20 Hauncher Notcher

  • Horizontal spindle moves up-down against the material clamped to the table
  • Climb cut and table insert ensure a clean cut even when cross grain cutting
  • Air / Oil adjustable feed system
  • Air clamps
  • Automatic cycle
  • Max. Work piece height – 8″
  • Max. Cutting depth – 2 ½”
  • Max. Cutting width – 12″, 16″, 20″
  • Cutter diameter – 10″
  • Motor – 15HP, 20HP,  25HP

Double Spindle Hauncher – Notcher

Haunchers – Notchers
  • Machine fully designed to customer specifications and requirements

Also available – Special Haunchers – Notchers

  • Special hauncher for bed frames
  • Sill cover notcher
  • Special hauncher for ammunition boxes
  • Toe-kick notcher for mass production
  • Special window hauncher
