Handrail and Plate Drilling Machine

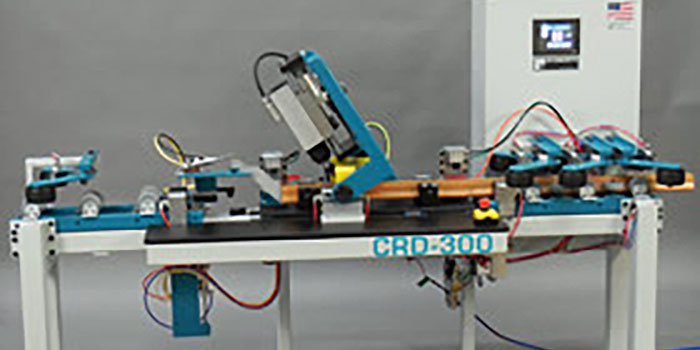

CRD-300: Handrail Drilling Machine

General Information

Our fully automatic CRD-300 CNC drill is used for drilling of handrails and plates (optional). It’s designed to operate with speed, precision and minimal setup time. CNC experience is not required. All the operator has to do is simply enter the distance of the firs hole to the end of rail, baluster spacing, number of holes, rake angle, insert rail (or plate) and press Start button. As the machine takes over the high-speed router motor drills the hole with plunging bit and servo-actuator advances material until all holes are finished. It takes roughly 3 seconds per hole in level or rake rail. The CRS-300 Automatic Handrail Drilling machine makes huge impact in day to day operation of stairbuilding. With this machine cost of mistakes are down, shop labor is decreased and productivity and quality goes up significantly.

This machine could be integrated as a part of Automated Railing Assembly system.

Machine Details

  • Heavy Duty fabricated construction
  • PLC control with Touch Screen input
  • Automatic board advance every cycle
  • Router Motor – 3 HP
  • Max. Speed – 18,000 RPM
  • Router bit Collet – ER25
  • Max. Handrail width – 2-3/4”
  • Handrail Height – 2-3/8”
  • Standard Handrail – Colonial 6010
  • Programmable Distance: End to first Baluster – 2” to 18”
  • Baluster Spacing- 2” to 6.500”
  • Rake Angle – 0° to 45°
  • Voltage – 230V -1 or 3 phase, 460V, 600V)
  • Machine Dimensions – 90” x 36” x 60”

Machine Detail Photos

  • Handrail and Plate Drilling Machine
  • Handrail and Plate Drilling Machine
  • Handrail and Plate Drilling Machine
  • Handrail and Plate Drilling Machine
  • Handrail and Plate Drilling Machine
